NOVA NCH

    • 1500 NCH-3
    • 1500 NCH-4
    • 2000 NCH-3
    • 2000 NCH-4
    • 2000 NCH-6
    Buy Now!
    Watch video

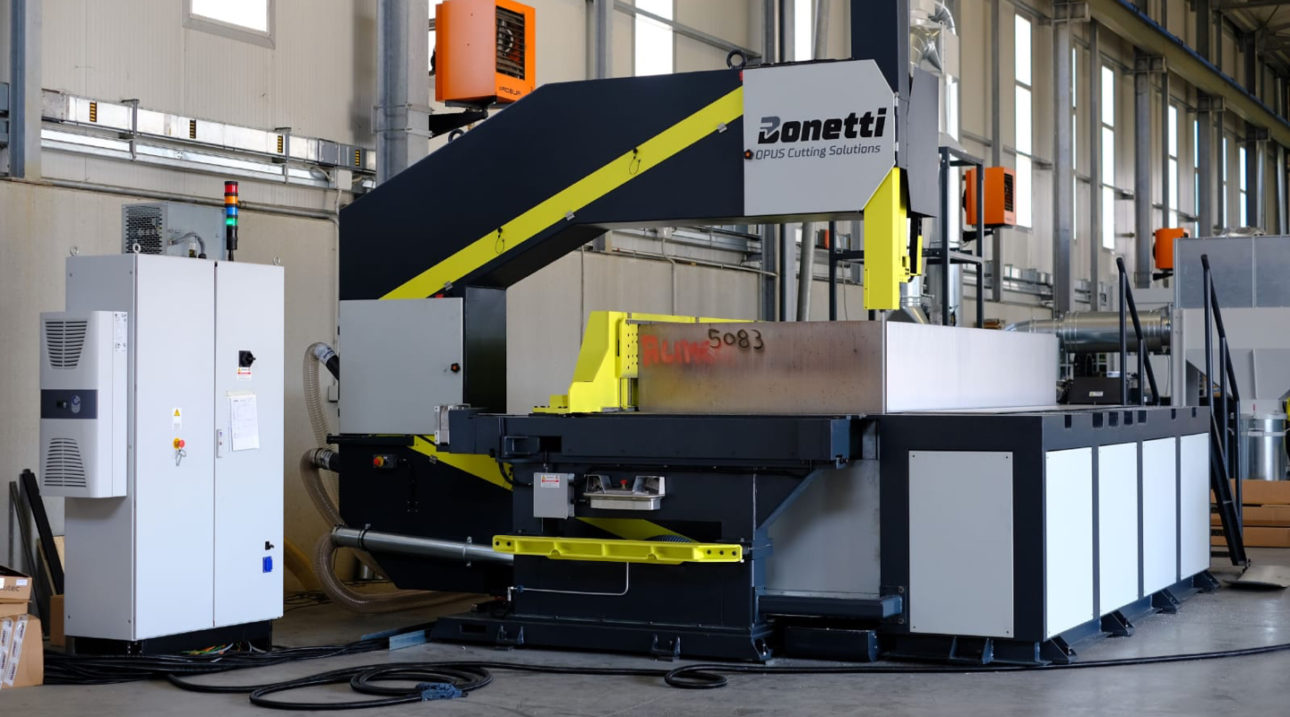

    Automatic moving arc saw

    Fast and realiable plate saw
    The best band saw machine for plates in the world; Since 1994, it is the standard in high-speed cutting of aluminum alloys, always one step ahead.

    Models

    The characteristics shown in the table are not binding and may differ from the current models, please contact us for more details.

    Features1500 NCH-31500 NCH-42000 NCH-32000 NCH-42000 NCH-6
    Cutting (mm)1500 x 3001500 x 3002000 x 8002000 x 8002000 x 800
    Blade size (mm)9100 x 419100 x 4110200 x 4110200 x 4110200 x 41
    Blade motor power (kW)1111151515
    Weight (Kg)14001500170018002000
    Bow stroke (mt)34346
    Features1500 NCH-3
    Cutting (mm)1500 x 300
    Blade size (mm)9100 x 41
    Blade motor power (kW)11
    Weight (Kg)1400
    Bow stroke (mt)3
    Features1500 NCH-4
    Cutting (mm)1500 x 300
    Blade size (mm)9100 x 41
    Blade motor power (kW)11
    Weight (Kg)1500
    Bow stroke (mt)4
    Features2000 NCH-3
    Cutting (mm)2000 x 800
    Blade size (mm)10200 x 41
    Blade motor power (kW)15
    Weight (Kg)1700
    Bow stroke (mt)3
    Features2000 NCH-4
    Cutting (mm)2000 x 800
    Blade size (mm)10200 x 41
    Blade motor power (kW)15
    Weight (Kg)1800
    Bow stroke (mt)4
    Features2000 NCH-6
    Cutting (mm)2000 x 800
    Blade size (mm)10200 x 41
    Blade motor power (kW)15
    Weight (Kg)2000
    Bow stroke (mt)6
