VBS TM

    0%
    • 600 TM
    • 800 TM
    • 1000 TM
    • 1250 TM

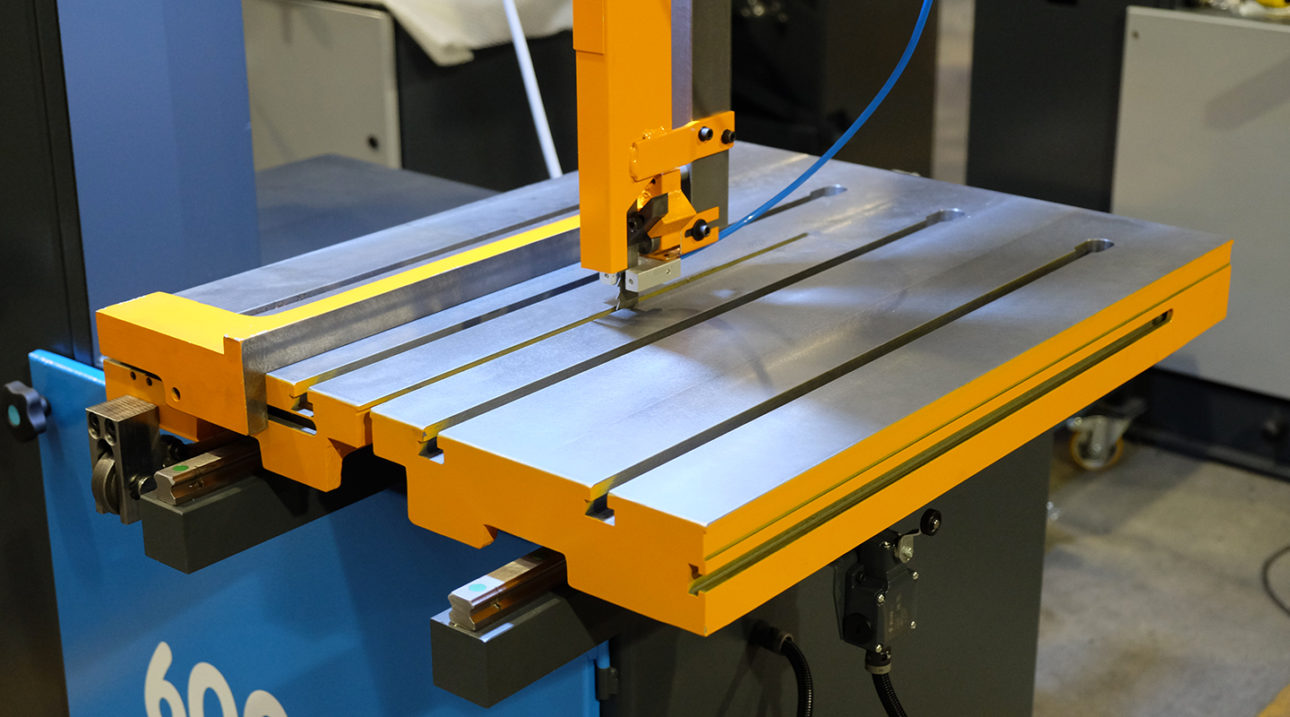

    Bandsaw machine with moving table

    Universal sliding table machines

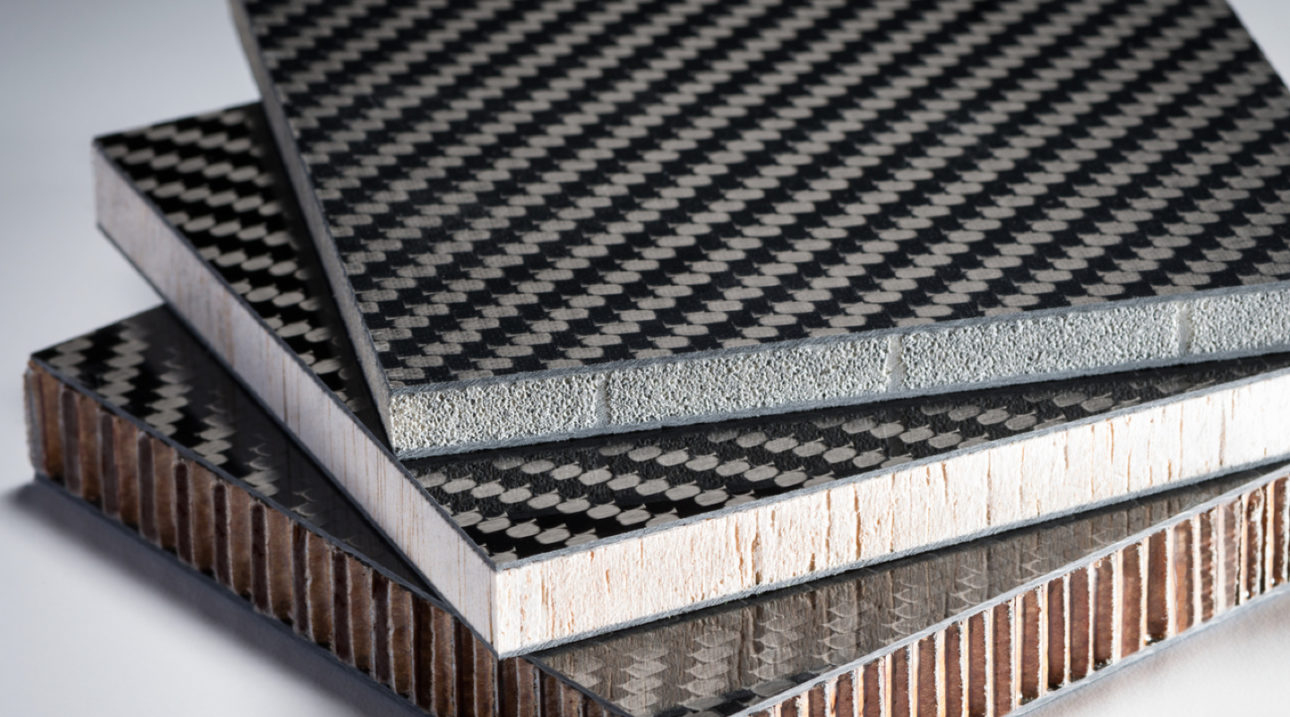

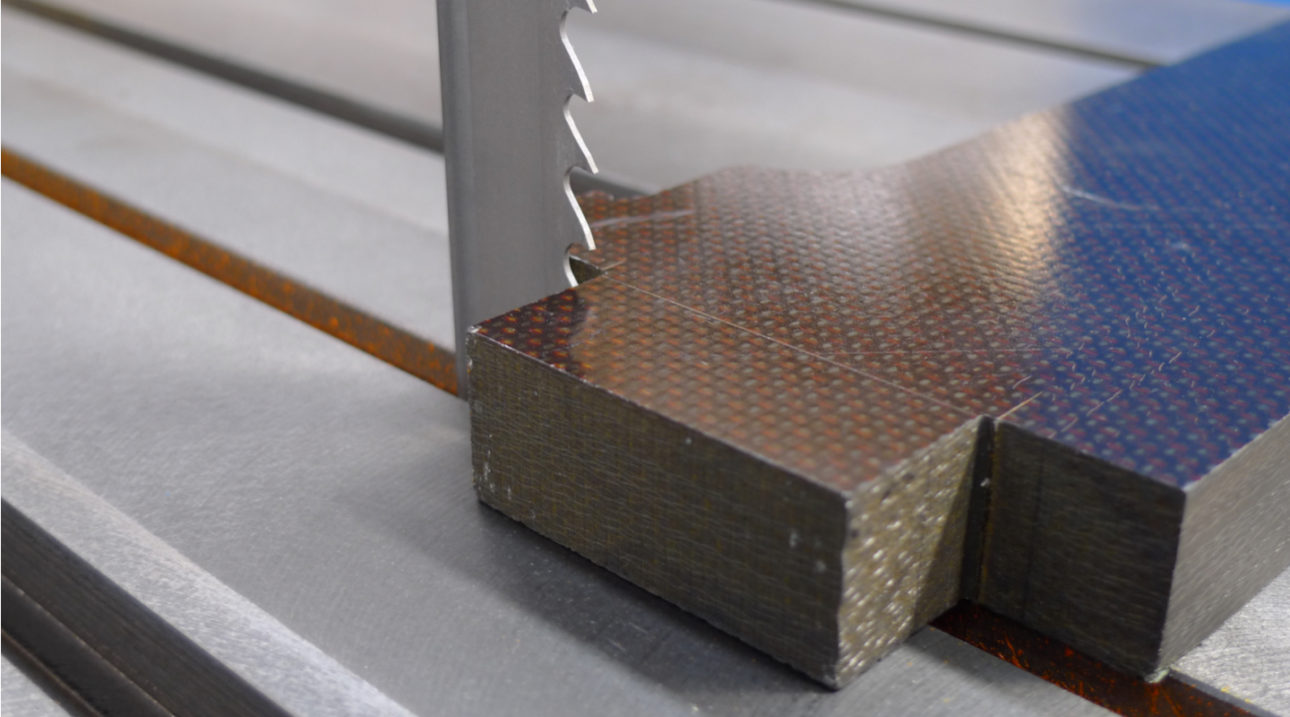

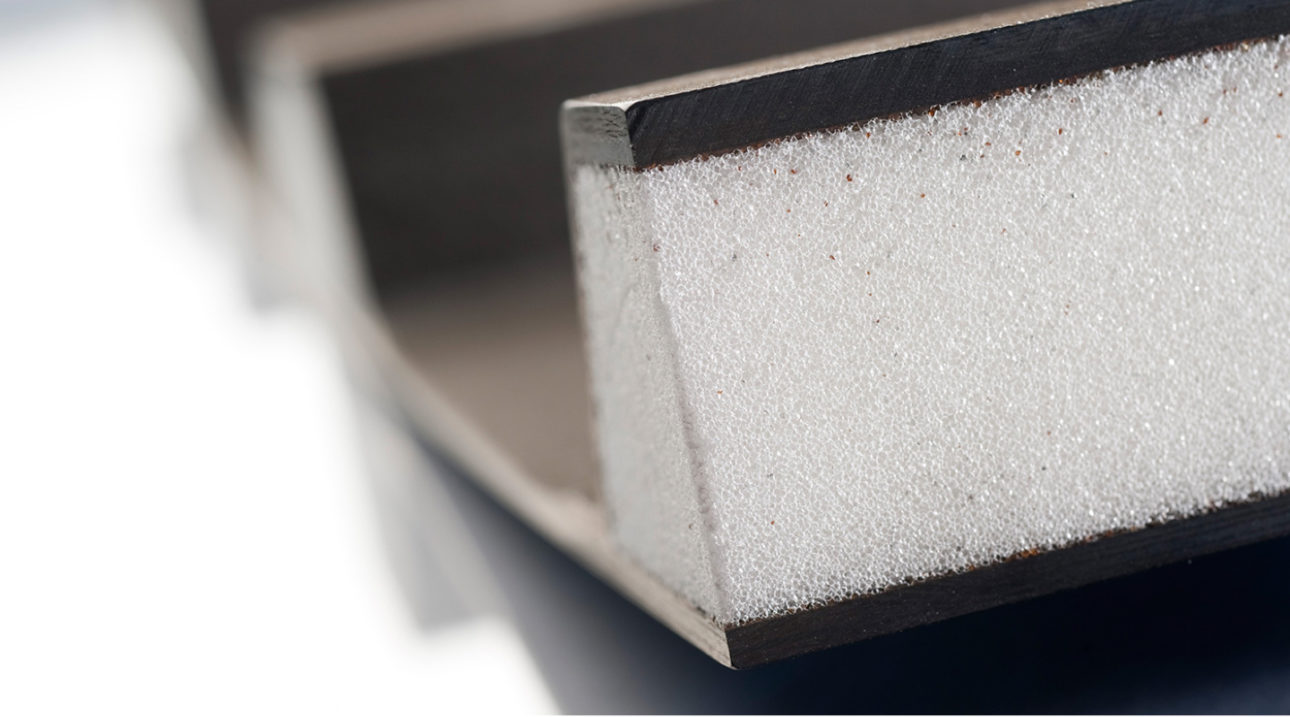

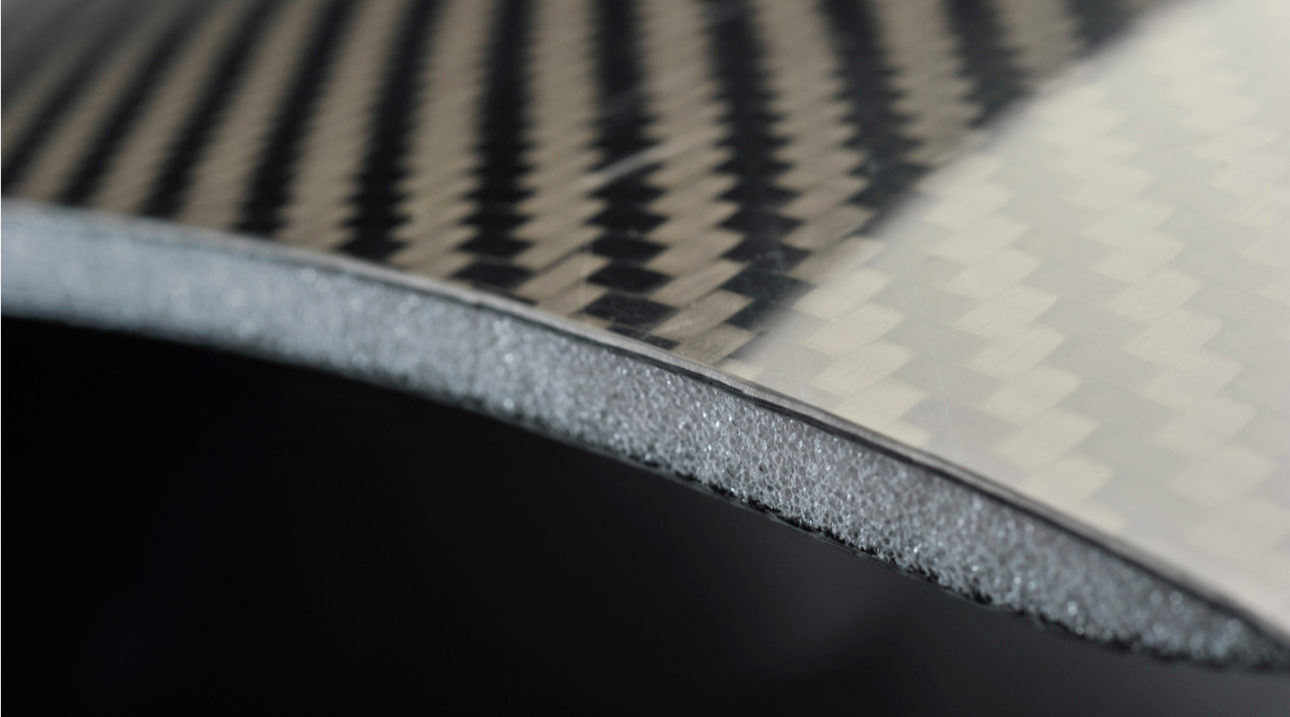

    Robust and reliable machine for cutting aluminium, steel, resins and composites.

    Models

    The characteristics shown in the table are not binding and may differ from the current models, please contact us for more details.

    Features600 TM800 TM1000 TM1250 TM
    Cutting (mm)600 x 500800 x 9001100 x 6501100 x 750
    Blade size (mm)5060 x 20/346500 x 34/415200 x 34/417350 x 34/41
    Blade motor power (kW)47,55,57,5
    Weight (Kg)1100295021005200
    Corsa tavola (mm)500105010501500
    Features600 TM
    Cutting (mm)600 x 500
    Blade size (mm)5060 x 20/34
    Blade motor power (kW)4
    Weight (Kg)1100
    Corsa tavola (mm)500
    Features800 TM
    Cutting (mm)800 x 900
    Blade size (mm)6500 x 34/41
    Blade motor power (kW)7,5
    Weight (Kg)2950
    Corsa tavola (mm)1050
    Features1000 TM
    Cutting (mm)1100 x 650
    Blade size (mm)5200 x 34/41
    Blade motor power (kW)5,5
    Weight (Kg)2100
    Corsa tavola (mm)1050
    Features1250 TM
    Cutting (mm)1100 x 750
    Blade size (mm)7350 x 34/41
    Blade motor power (kW)7,5
    Weight (Kg)5200
    Corsa tavola (mm)1500
